Description
Transparency across all data levels is key to a modern company’s success. The acquisition and consolidation of data from all areas of the company is necessary to establish safety measures to protect systems and machinery, and save costs, for example.
This goal is associated with many challenges, because different standards, interfaces and communication options must all be coordinated with each other. The networking of previously isolated areas, from the machine level to ERP systems and building management systems, is very complex. OPC UA is a standardization for data transmission that simplifies this consolidation. Janitza’s UMG 801 energy measurement device offers various communication interfaces and enables direct data transfer to higher-level systems via OPC UA. With its modular expansion capability, the UMG 801 is optimally suited to cover the complete range of needs in an energy management system. It delivers transparency concerning energy consumption and energy costs at all measurement levels.
Flexible connection: Data access made easy
The networking options offered by the UMG 801 maximize its benefits and minimize the work required for integration into higher-level systems. The device is equipped with two simultaneously usable Ethernet interfaces for direct wiring and data transmission as well as an RS-485 interface for reading out the acquired data or for setting up a measurement topology.
With the OPC UA standard, you also benefit from a software architecture that features integrated security mechanisms. This makes consolidating data from all corporate divisions much easier, which is another milestone on the road to implementing Industry 4.0.

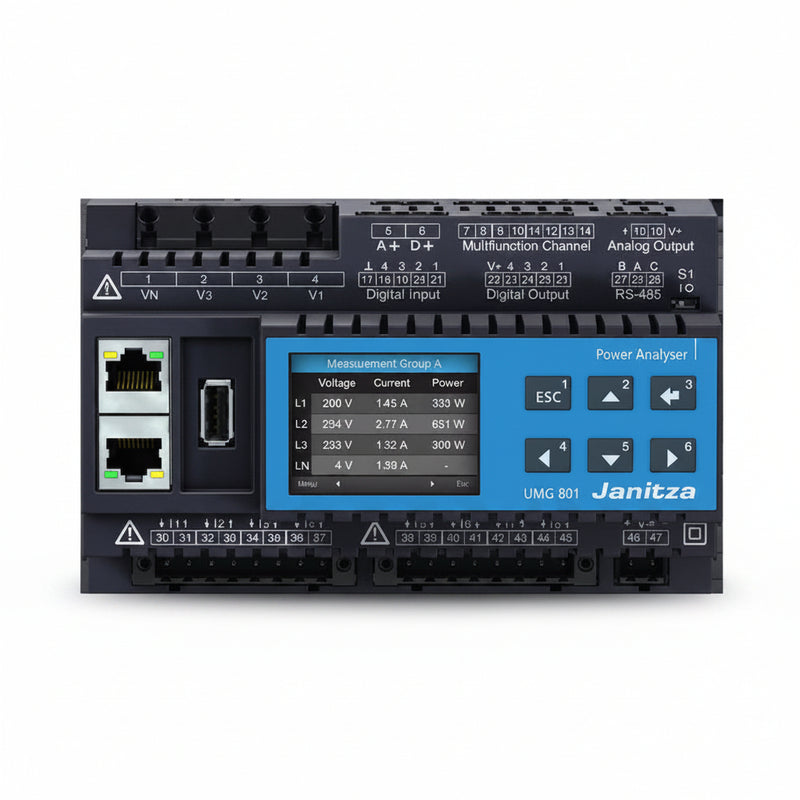

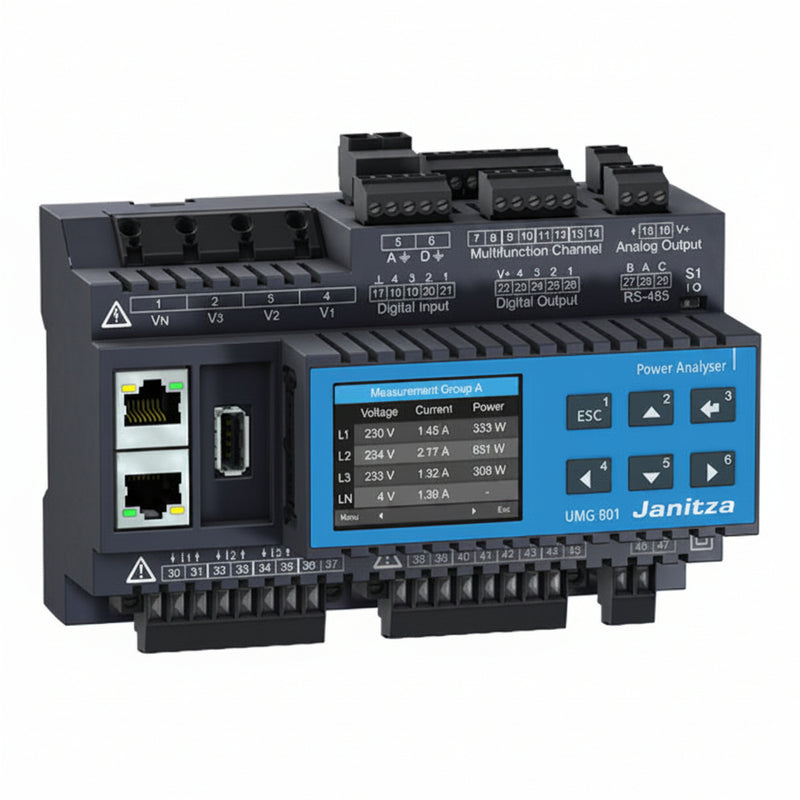

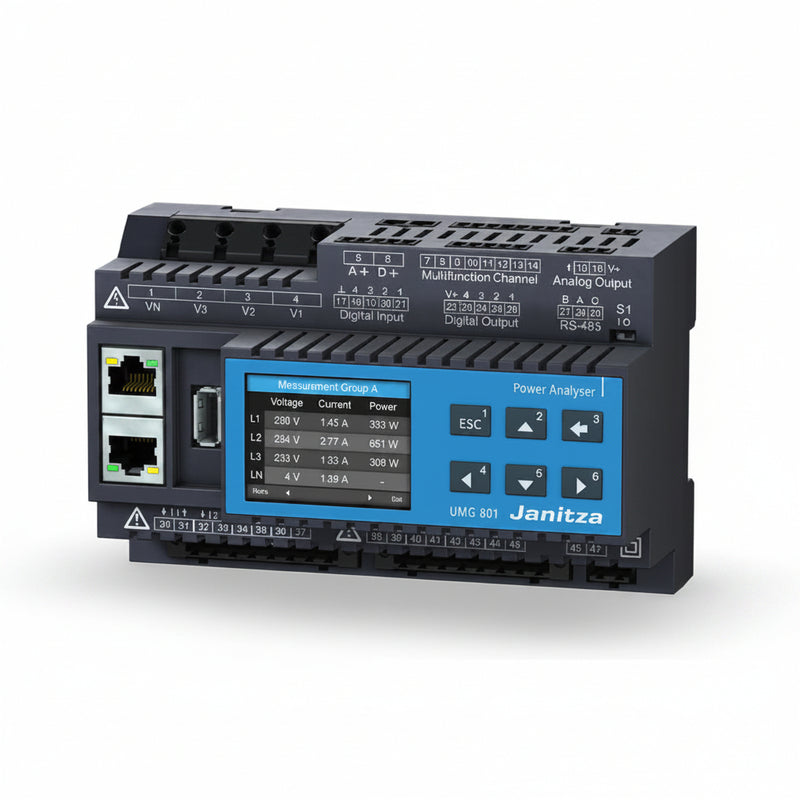

UMG 801 basic device
Transparency across all data levels is key to a modern company’s success. The acquisition and consolidation of data from all areas of the company is necessary to establish safety measures to protect systems and machinery, and save costs, for example.
CommunicativeFlexible communication via RS 485 or 2 Ethernet interfaces (simultaneous or separate). Numerous protocols for easy integration.
Comprehensive power quality parameters Records numerous parameters with high precision, e.g. voltage harmonics up to the 127th, unbalances, events and transients from 18 µs.
High measurement accuracyThe UMG 801 offers a sampling frequency of 51.2 kHz (voltage) and a measuring accuracy of class 0.2.
Maximum data security Secure communication via OPC UA security structures, Modbus whitelisting, and 4 GB memory for data redundancy.
