Description
Product materials:
1. Bearing: rolling bearing, NSK low noise high-quality material.
2. Brass terminals plug-in.
3. Shaft: single shaft, nickel plating treatment.
4. Enclosure: electrophoretic coating treatment.
5. Winding: 100% pure copper.
The features:

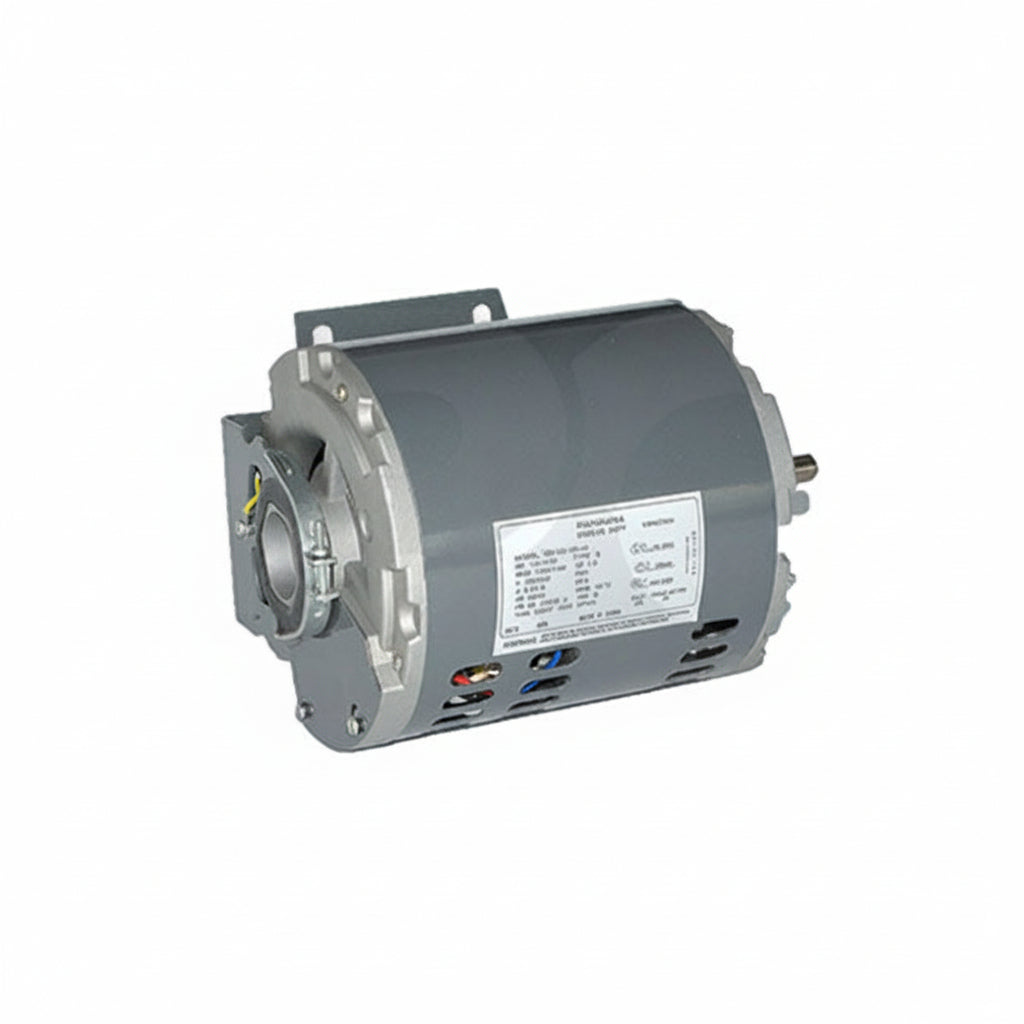

1. Single-Phase double speed motor with steel housing, designed for the cooling system, evaporative cooler, etc, suit for hot weather environments.
2. High-quality winding with excellent insulation and heat transmission properties.
3. Nice appearance, high starting torque, low starting current, smooth turning, low-temperature rise, low vibration, low noise, and great overload performance.
4. Saving Energy, higher efficiency.
5. Long life, Equipped with overheating protection, good Protection against Humidity.
6. Models with power 1/4HP, 1/3HP, 1/2HP, 3/4HP, 1HP.
7. Special motors can be designed according to the customer's requirements. Pure copper coil or copper clad aluminum coil can be chosen.
8. Be wildly used in Iraq, Sudan, Iran, Saudi, and other gulf country markets.
| Product Type | Single-Phase Double Speed Motor with Steel Housing |
| Application | Cooling systems, evaporative coolers for hot weather environments |
| Materials | - NSK low noise high-quality rolling bearing - Brass terminals plug-in - Nickel plated single shaft - Electrophoretic coated enclosure - 100% pure copper winding |
| Power Range | 1/4HP, 1/3HP, 1/2HP, 3/4HP, 1HP |
| Performance Features | - High starting torque, low starting current - Smooth turning, low-temperature rise - Low vibration, low noise - Great overload performance - Energy efficient - Long life - Overheating protection - Good humidity protection |
| Customization | Special motors can be designed according to customer requirements with pure copper coil or copper clad aluminum coil options |
| Target Markets | Iraq, Sudan, Iran, Saudi Arabia, and other Gulf countries |
Product specification:
| Model | Power (HP) | Voltage (V) | Frequency (Hz) | Speed (RPM) | Rotation | Insulation Class |
|---|---|---|---|---|---|---|
| YDK140-150-6T5 | 1/5 | 220-240 | 50 | 850/3 SPD | CCW | B |
| YDK160-185-4A | 1/4 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-185-4A2 | 1/4 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-245-4A | 1/3 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-245-4A2 | 1/3 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-375-4A | 1/2 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-375-4A2 | 1/2 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-550-4A | 3/4 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-550-4A2 | 3/4 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-735-4A | 1 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-735-4A2 | 1 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
