Description
Product materials:
1. NSK low noise high-quality rolling bearing.
2. Brass terminals plug-in.
3. Shaft: single shaft, nickel plating treatment.
4. Enclosure: electrophoretic coating treatment.
5. Winding: 100% pure copper.
Product features:
1. Steel housing, designed for the cooling system, evaporative cooler, etc, suits hot weather environments.
2. High-quality winding with excellent insulation and heat transmission properties.
3. Nice appearance, high starting torque, low starting current, smooth turning, low-temperature rise, low vibration, low noise, and great overload performance.
4. Saving Energy, higher efficiency.
5. Long life, Equipped with overheating protection, good Protection against Humidity.
Product use:
1. Various kinds of air coolers, commercial and residential.
2. Air conditioning system.

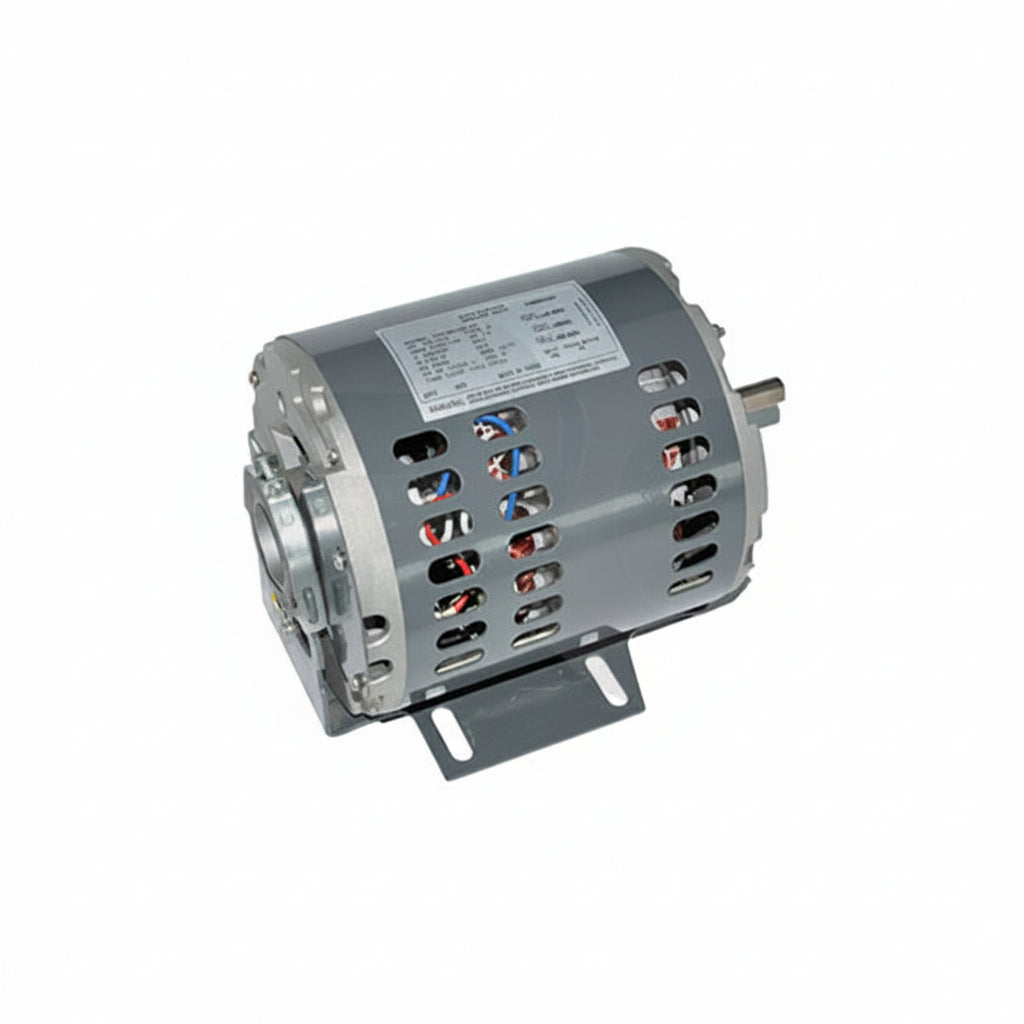

| Product Type | Steel Housing Cooling System Motor |
| Applications | - Various kinds of air coolers (commercial and residential) - Air conditioning systems |
| Materials | - NSK low noise high-quality rolling bearing - Brass terminals plug-in - Nickel plated single shaft - Electrophoretic coated enclosure - 100% pure copper winding |
| Housing | Steel housing suitable for hot weather environments |
| Performance Features | - High starting torque, low starting current - Smooth turning, low-temperature rise - Low vibration, low noise - Great overload performance - Energy efficient |
| Protection | - Overheating protection - Good humidity protection |
| Winding Quality | High-quality with excellent insulation and heat transmission properties |
Product specification:
| Model | Power (HP) | Voltage (V) | Frequency (Hz) | Speed (RPM) | Rotation | Insulation Class |
|---|---|---|---|---|---|---|
| YDK140-150-6T5 | 1/5 | 220-240 | 50 | 850/3 SPD | CCW | B |
| YDK160-185-4A | 1/4 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-185-4A2 | 1/4 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-245-4A | 1/3 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-245-4A2 | 1/3 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-375-4A | 1/2 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-375-4A2 | 1/2 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-550-4A | 3/4 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-550-4A2 | 3/4 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-735-4A | 1 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-735-4A2 | 1 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
