Description
Product materials:
1. Bearing: rolling bearing, NSK low noise high-quality material.
2. Brass terminals plug-in.
3. Shaft: single shaft, nickel plating treatment.
4. Enclosure: electrophoretic coating treatment.
5. Winding: 100% pure copper.
Product features:

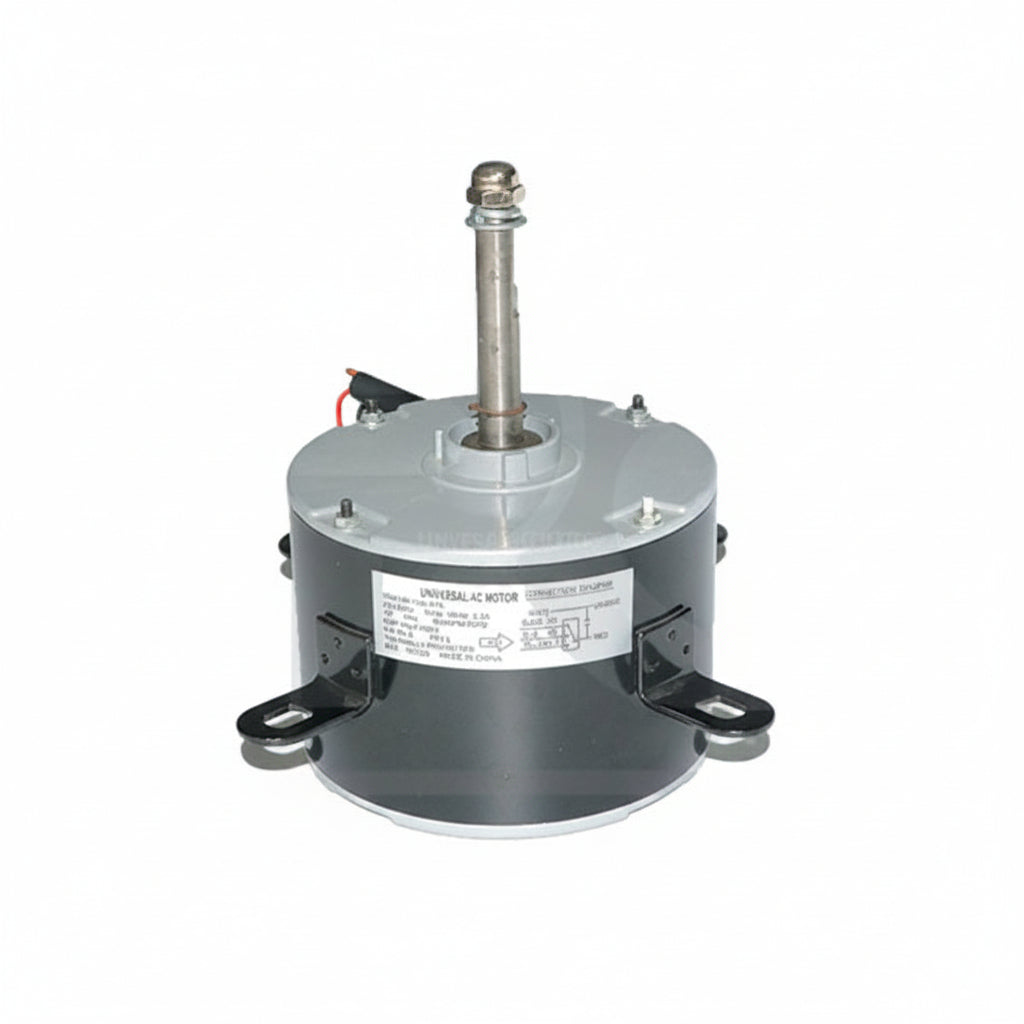

1. Single phase motor with steel housing, designed for the cooling system, evaporative cooler, etc, suit for hot weather environments.
2. High-quality winding with excellent insulation and heat transmission properties.
3. Nice appearance, high starting torque, low starting current, smooth turning, low-temperature rise, low vibration, low noise, and great overload performance.
4. Saving Energy, higher efficiency.
5. Long life, Equipped with overheating protection, good Protection against Humidity.
6. Models with power 1/5HP, 1/4HP, 1/3HP, 1/2HP, 3/4HP, 1HP.
7. Special motors can be designed according to the customer's requirements. Pure copper coil or copper clad aluminum coil can be chosen.
8. Be wildly used in Iraq, Sudan, Iran, Saudi, and other gulf country markets.
9. Other names: cooler motor, air conditioner motor, ac motor, fan motor, blower motor.
Product use:
1. Various kinds of air coolers, commercial and residential.
2. Air conditioning system.
| Product Type | Single Phase Motor with Steel Housing for Cooling Systems |
| Also Known As | Cooler motor, air conditioner motor, AC motor, fan motor, blower motor |
| Applications | - Various kinds of air coolers (commercial and residential) - Air conditioning systems |
| Materials | - NSK low noise high-quality rolling bearing - Brass terminals plug-in - Nickel plated single shaft - Electrophoretic coated enclosure - 100% pure copper winding |
| Available Power Range | 1/5HP, 1/4HP, 1/3HP, 1/2HP, 3/4HP, 1HP |
| Performance Features | - High starting torque, low starting current - Smooth turning, low-temperature rise - Low vibration, low noise - Great overload performance - Energy efficient - Long life |
| Protection | - Overheating protection - Good humidity protection |
| Customization | - Special motors designed to customer requirements - Material options: pure copper coil or copper clad aluminum coil |
| Target Markets | Iraq, Sudan, Iran, Saudi Arabia, and other Gulf countries |
| Environment Suitability | Hot weather environments |
Product specification:
| Model | Power (HP) | Voltage (V) | Frequency (Hz) | Speed (RPM) | Rotation | Insulation Class |
|---|---|---|---|---|---|---|
| YDK140-150-6T5 | 1/5 | 220-240 | 50 | 850/3 SPD | CCW | B |
| YDK160-185-4A | 1/4 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-185-4A2 | 1/4 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-245-4A | 1/3 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-245-4A2 | 1/3 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-375-4A | 1/2 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-375-4A2 | 1/2 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-550-4A | 3/4 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-550-4A2 | 3/4 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-735-4A | 1 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-735-4A2 | 1 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
