Description
Product Features:
100% pure copper winding motors.
Reasonable structure, high efficiency, low-temperature rise, low noise, small vibration.
Use NSK low noise high-quality rolling bearing.
Nickel plating for shaft, electrophoretic coating for the enclosure.
Insulation class E/B/F, protection class IP20~IP54.
Product Applications:

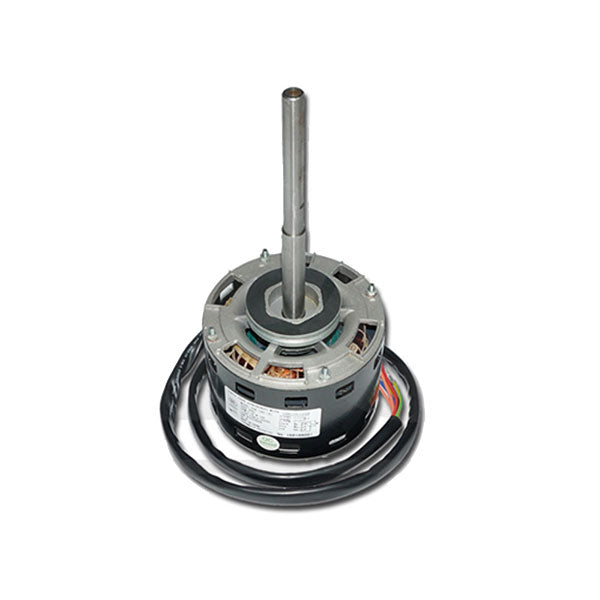

The YDK120 series indoor fan motor with customized and different mounting types can also be applied to ceiling-type air conditioners.
Technical Parameters
| Model Number | Voltage
/V |
Frequency
/Hz |
Output Power
/W |
Rated Speed
/RPM |
Capacitor
/μF |
| YDK120-74-4A | 220-240 | 50 | 74 | 1390/3 SPD | 4/370 |
| YDK120-75-6A | 220-240 | 50 | 75 | 850 | 4/370 |
| YDK120-90-4A | 208-230 | 60 | 90 | 1550 | 4/370 |
| YDK120-90-6 | 220 | 50 | 90 | 890/3 SPD | 5/370 |
| YDK120-90-6A2 | 220-240 | 50 | 90 | 850 | 5/400 |
| YDK120-110-6A2 | 220-240 | 50 | 110 | 900 | 5/370 |
| YDK120-150-6A | 220-240 | 50 | 150 | 840/3 SPD | 6/370 |
| YDK120-185-4A | 220-240 | 50 | 185 | 1250 | 5/440 |
| YDK120-185-4A2 | 220-240 | 50 | 185 | 1050/3 SPD | 10/370 |
| YDK120-185-6A | 220-240 | 60 | 185 | 950 | 5/400 |
| YDK120-185-6A2 | 220-240 | 50 | 185 |
