Description
Product Features:
1. Use NSK low noise high-quality rolling bearing.
2. Nickel plating for shaft, electrophoretic coating for the enclosure.
3. Insulation class E/B/F, protection class IP20~IP54.
4. Reasonable structure, high efficiency, low-temperature rise, low noise, small vibration.
5. 100% pure copper, the aluminum motor can also be available if the customer needs a large quantity.

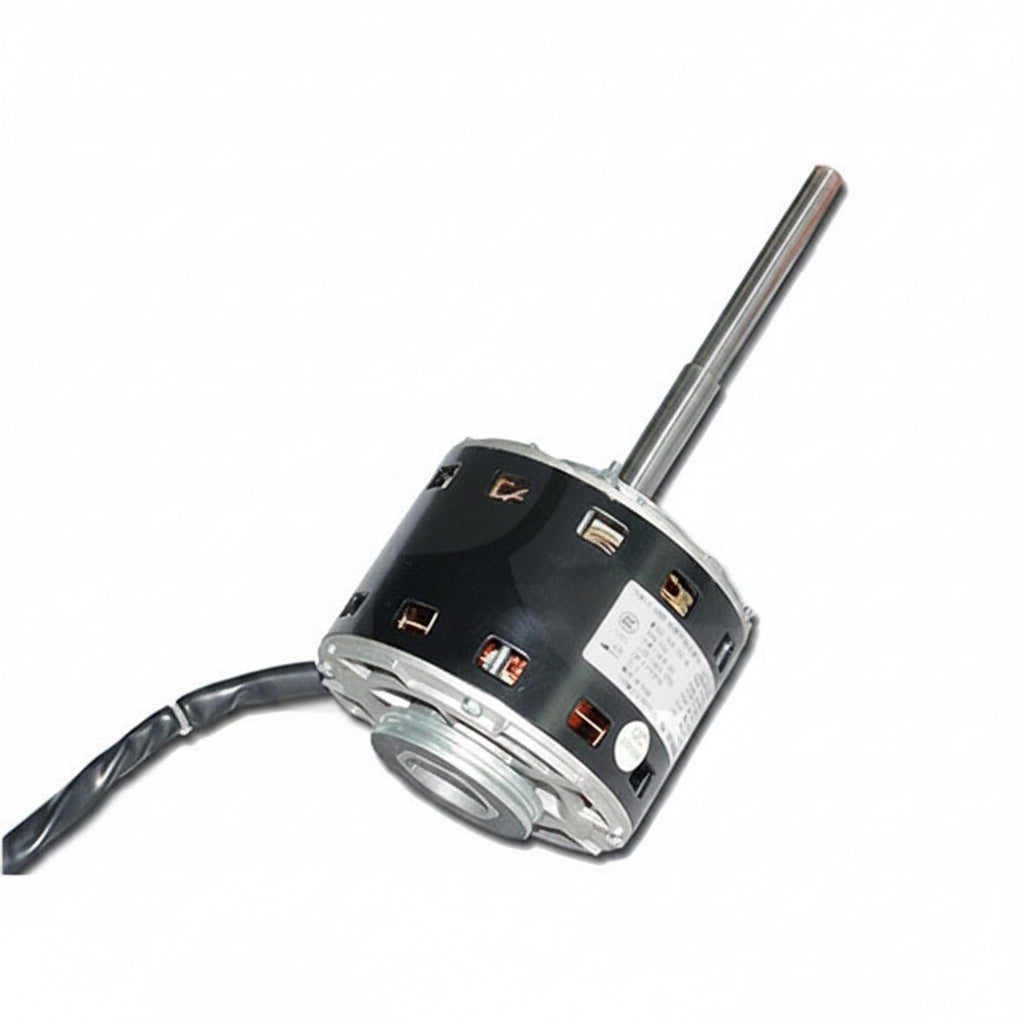

6. Air Conditioner AC Fan Motor / Single Shaft Indoor Unit Fan Motor For Air Condition
Product Applications:
1. Used for 2P, 3P, 4P split type indoor air conditioner.
2. It adopts high-quality thermostat encapsulation materials.
3. Mini type, light, little vibration, low noise, high efficiency.
4. Two serials of single speed and three speed.
5. Advanced manufacturing equipment.
6. Skilled craftwork, high level of automatization.
Technical Parameters
Model Number | Voltage
/V |
Frequency
/Hz |
Output Power
/W |
Rated Speed
/RPM |
Capacitor
/μF |
YDK120-74-4A | 220-240 | 50 | 74 | 1390/3 SPD | 4/370 |
YDK120-75-6A | 220-240 | 50 | 75 | 850 | 4/370 |
YDK120-90-4A | 208-230 | 60 | 90 | 1550 | 4/370 |
YDK120-90-6 | 220 | 50 | 90 | 890/3 SPD | 5/370 |
YDK120-90-6A2 | 220-240 | 50 | 90 | 850 | 5/400 |
YDK120-110-6A2 | 220-240 | 50 | 110 | 900 | 5/370 |
YDK120-150-6A | 220-240 | 50 | 150 | 840/3 SPD | 6/370 |
YDK120-185-4A | 220-240 | 50 | 185 | 1250 | 5/440 |
YDK120-185-4A2 | 220-240 | 50 | 185 | 1050/3 SPD | 10/370 |
YDK120-185-6A | 220-240 | 60 | 185 | 950 | 5/400 |
YDK120-185-6A2 | 220-240 | 50 | 185 |
