Description

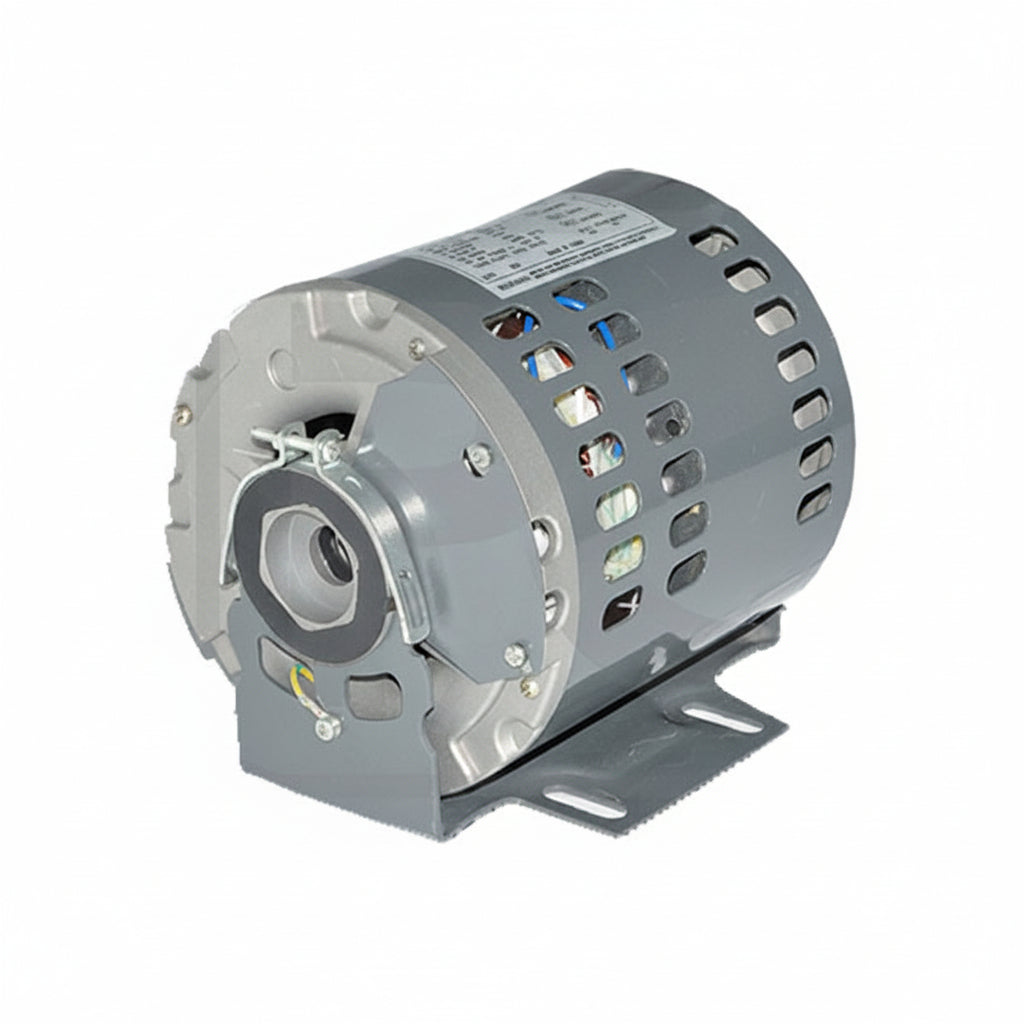

Ventilation Fan Motor
The motors can be customized according to the different voltages, frequencies, and rotation speeds. Performance characteristics include smooth operation, strong loading capacity, fast startup, and long work times. The quality is convincing, and the price is suitable. In addition, we can develop new products according to the customer's needs.
The application
Used in the fan-coil unit of the central air conditioner
Features
High efficiency and low-temperature rise: it can be optimized in design in accordance with different kinds of fan coil units, thus guaranteeing the best match between the air wheel and surface cooler.
Low noise and small vibration: being adapted international famous qualified low noise ball bearing, it makes motor long life and no need for more oil supplying.
| Product Type | Ventilation Fan Motor |
| Application | Fan-coil units of central air conditioners |
| Performance Characteristics | - Smooth operation - Strong loading capacity - Fast startup - Long working life |
| Key Features | - High efficiency - Low-temperature rise - Low noise - Small vibration - No need for additional oil |
| Wire Options | - Copper wire - Aluminum wire - Copper wire mix aluminum wire |
| Customization | Motors can be customized for different: - Voltages - Frequencies - Rotation speeds - New product development according to customer needs |
Product specification:
| Model | Power (HP) | Voltage (V) | Frequency (Hz) | Speed (RPM) | Rotation | Insulation Class |
|---|---|---|---|---|---|---|
| YDK140-150-6T5 | 1/5 | 220-240 | 50 | 850/3 SPD | CCW | B |
| YDK160-185-4A | 1/4 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-185-4A2 | 1/4 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-245-4A | 1/3 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-245-4A2 | 1/3 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-375-4A | 1/2 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-375-4A2 | 1/2 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-550-4A | 3/4 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-550-4A2 | 3/4 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-735-4A | 1 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-735-4A2 | 1 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
