Description
Features:

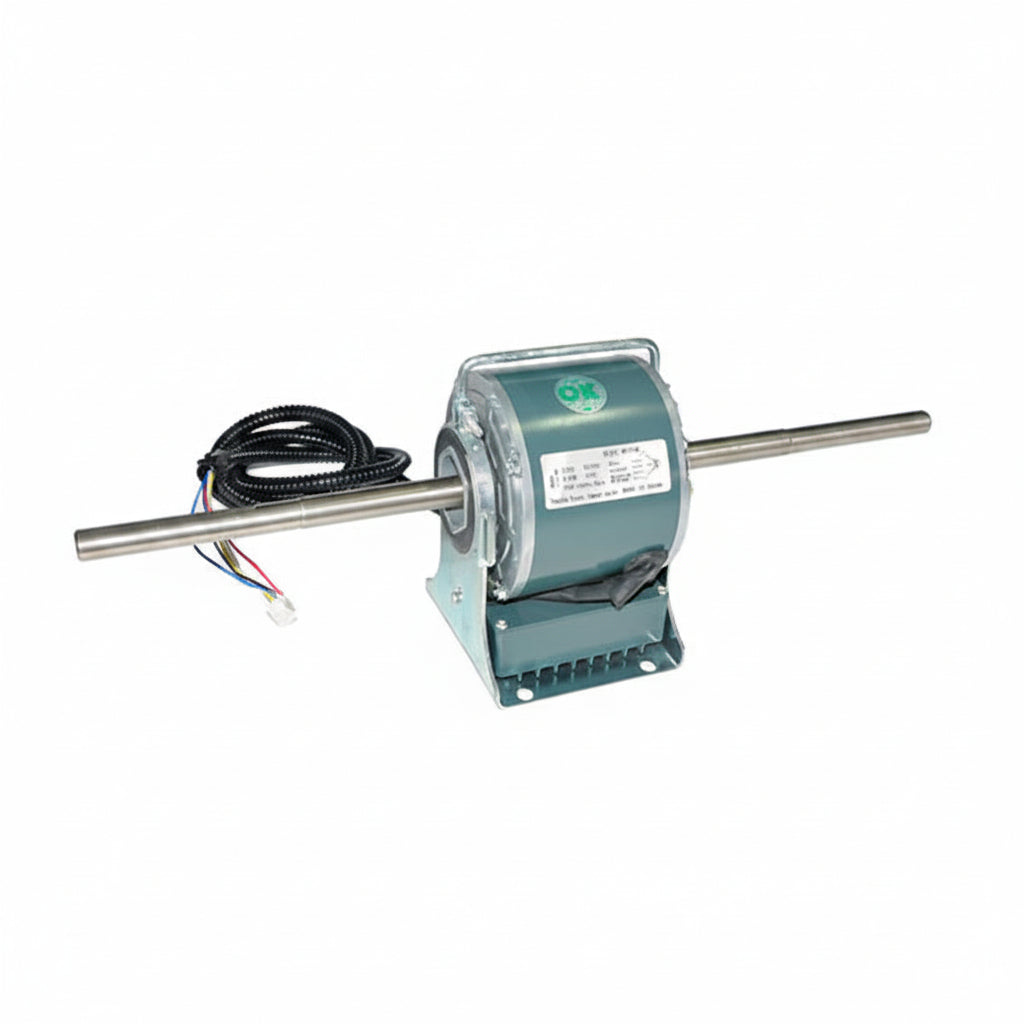

1. Single-Phase double shaft motor with steel housing, designed for window-type air conditioner.
2. High-quality pure copper winding with excellent insulation and heat transmission properties.
3. Pretty appearance, low starting current, smooth turning, low-temperature rise, low noise, and great overload performance.
4. Saving Energy, higher efficiency.
5. Long life.
6. Models with power 1/6HP, 1/5HP, 1/4HP, 1/3HP, 1/2HP, 3/4HP, 1HP.
7. Special motors can be designed according to the customer's requirements. Pure copper coil or aluminum coil can be chosen.
Product Applications:
1. Window-type air conditioner.
2. Fresh air ventilation system.
3. Air filtration and purification.
| Product Type | Single-Phase Double Shaft Motor with Steel Housing |
| Primary Application | Window-Type Air Conditioner |
| Additional Applications | - Fresh air ventilation systems - Air filtration and purification |
| Power Range | 1/6HP, 1/5HP, 1/4HP, 1/3HP, 1/2HP, 3/4HP, 1HP |
| Material | High-quality pure copper winding |
| Performance Features | - Low starting current - Smooth turning - Low-temperature rise - Low noise - Great overload performance - Energy efficient - Long life |
| Customization | - Special motors can be designed according to customer requirements - Material options: pure copper coil or aluminum coil |
Parameters:
Note: Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered.
| Model Number | Voltage (V) | Frequency (Hz) | Power | Speed (RPM) | Rotation | Capacitor (MDF/VAC) | OEM Model |
|---|---|---|---|---|---|---|---|
| YSK140-120-6A | 208-230 | 60 | 1/6HP | 1095/3 SPD | CCW-LE | 5/370 | 5KCP39DGS008T |
| YSK140-120-6A2 | 208-230 | 60 | 1/6HP | 1000/2 SPD | CW-LE | 5/370 | 5KCP39DGM511T |
| YSK140-120-6A5 | 208-230 | 60 | 1/6HP | 1095/3 SPD | CCW-LE | 5/370 | 5KCP39DGM004T |
| YSK140-120-6A6 | 208-230 | 60 | 1/6HP | 1050/3 SPD | CCW-LE | 5/370 | F48U05B09 |
| YSK140-120-6A7 | 208-230 | 60 | 1/6HP | 1050/3 SPD | CW-LE | 5/370 | K55HXPKG-5158 |
| YSK140-120-6A18 | 208-230 | 60 | 1/6HP | 1000/2 SPD | CW-LE | 5/370 | F48SE6MA61 |
| YSK140-120-6A3 | 208-230 | 60 | 1/6HP | 1050/3 SPD | CW-LE | 5/370 | ACE-635-16 |
| YSK140-120-4A22 | 208-230 | 60 | 1/6HP | 1050/3 SPD | CCW-LE | 5/370 | F48CS6MA14 |
| YSK140-120-4A23 | 115 | 60 | 1/6HP | 1075/3 SPD | CCW-LE | 5/370 | D754 |
1/5 HP Models:
| Model Number | Voltage (V) | Frequency (Hz) | Power | Speed (RPM) | Rotation | Capacitor (MDF/VAC) | OEM Model |
|---|---|---|---|---|---|---|---|
| YSK140/30-150-4 | 220/230 | 50 | 1/5HP | 1200/3 SPD | REVERSIBLE | 5/370 | - |
| YSK140-150-6A | 208-230 | 60 | 1/5HP | 1115/3 SPD | CCW-LE | 5/370 | 5KCP39FGM4440 |
| YSK140-150-6A2 | 208-230 | 60 | 1/5HP | 1075/3 SPD | CW-LE | 4/370 | 5KCP39FGM672S |
| YSK140-150-6A3 | 208-230 | 60 | 1/5HP | 1100/2 SPD | CW-LE | 5/370 | 5KCP39FGM639T |
| YSK140-150-6A4 | 208-230 | 60 | 1/5HP | 1115/3 SPD | CW-LE | 5/370 | F48U01A30 |
| YSK140-150-6A5 | 208-230 | 60 | 1/5HP | 1050/3 SPD | CW-LE | 5/370 | 5KCP39HGS635S |
| YSK140-150-6A6 | 208-230 | 60 | 1/5HP | 1100/3 SPD | CCW-LE | 5/370 | K55HXLEK-5966 |
| YSK140-150-6A7 | 208-230 | 60 | 1/5HP | 1100/3 SPD | CCW-LE | 5/370 | ACE-000-33C |
| YSK140-150-6A10 | 208-230 | 60 | 1/5HP | 1050/3 SPD | CW-LE | 5/370 | F48533B382U-Y |
| YSK140-150-6A14 | 208-230 | 60 | 1/5HP | 1050/2 SPD | REVERSIBLE | 4/370 | K55ZZEHN-4921 |
| YSK140-150-4A21 | 208-230 | 60 | 1/5HP | 1625/3 SPD | CCW-LE | 5/370 | D775 |
| YSK140-150-4A22 | 115 | 60 | 1/5HP | 1625/3 SPD | CCW-LE | 5/370 | D776 |
| YSK140-150-4A | 208-230 | 60 | 1/5HP | 1350/2 SPD | CCW-LE | 5/370 | KA5HXNGT-9416C |
| YSK140-150-4A2 | 208-230 | 50 | 1/5HP | 1360/3 SPD | REVERSIBLE | 5/400 | PM4 |
