Description
- 55/5 uf or 55/5 MFD 440v AC Capacitor. Replaces BOTH 370 & 440 VAC capacitors
- Can size measures 2-1/2″ diameter x 4-1/3″ tall. Operating temperature range -40 C. to +70 C/ -40F to 158F
- Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
- Built to the TOUGHEST USA standards for AC motor run capacitors including EIA-456-A and IEC 60252-1:2001
- Replacement for P291-5554RS , P291-5553R , TT-CAP-55/5/440 , cap050550440rtp , cap050550440rt , TRCFD555 , 97Z9839BZ3 , Z97F9839 , 97F9839BX , CPT00670 , P2915554RS , TP-CAP-55/5/440R , HCKS550D050R440Z
| Brand | The HVAC Genius |
| Material | Aluminum |
| Shape | Round |
| Operating Voltage | 440 Volts |
| Maximum Voltage | 440 Volts |

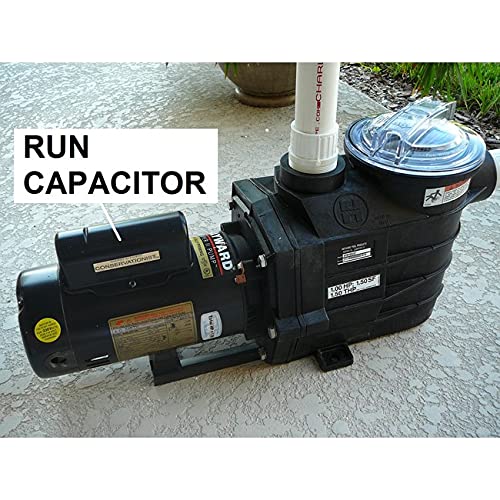

A capacitor is an electric component that temporarily stores an electrical charge. A "run capacitor" supports electric motors, such as in air conditioner or heat pump units, a fan motor and a compressor motor. The capacitor has two terminals. Capacitors come in a variety of sizes, depending on the capacitance (µF or MFD), such as 40 plus 5 µF, and also the voltage. A 440 volt capacitor can be used in place of a 370 volt, as it is build better, but the 370 can’t be used in place of a 440 volt. It will work for a while and will fail prematurely, as exceeding the capacitor's rated voltage will cause the dielectric to break down and the capacitor to short out. Same as an electric wire- 600V rated wire is better than 300V one .The capacitance(µF or MFD) must be the same or stay within 10%+ or 5%- of its original value . Example: 50 µF cap can be substituted by 47.5 to 55 µF with the same or better voltage ratings capacitor . Round oval-shaped run capacitors are commonly used for air conditioning, to help in the starting of the compressor and the condenser fan motor.
