Description

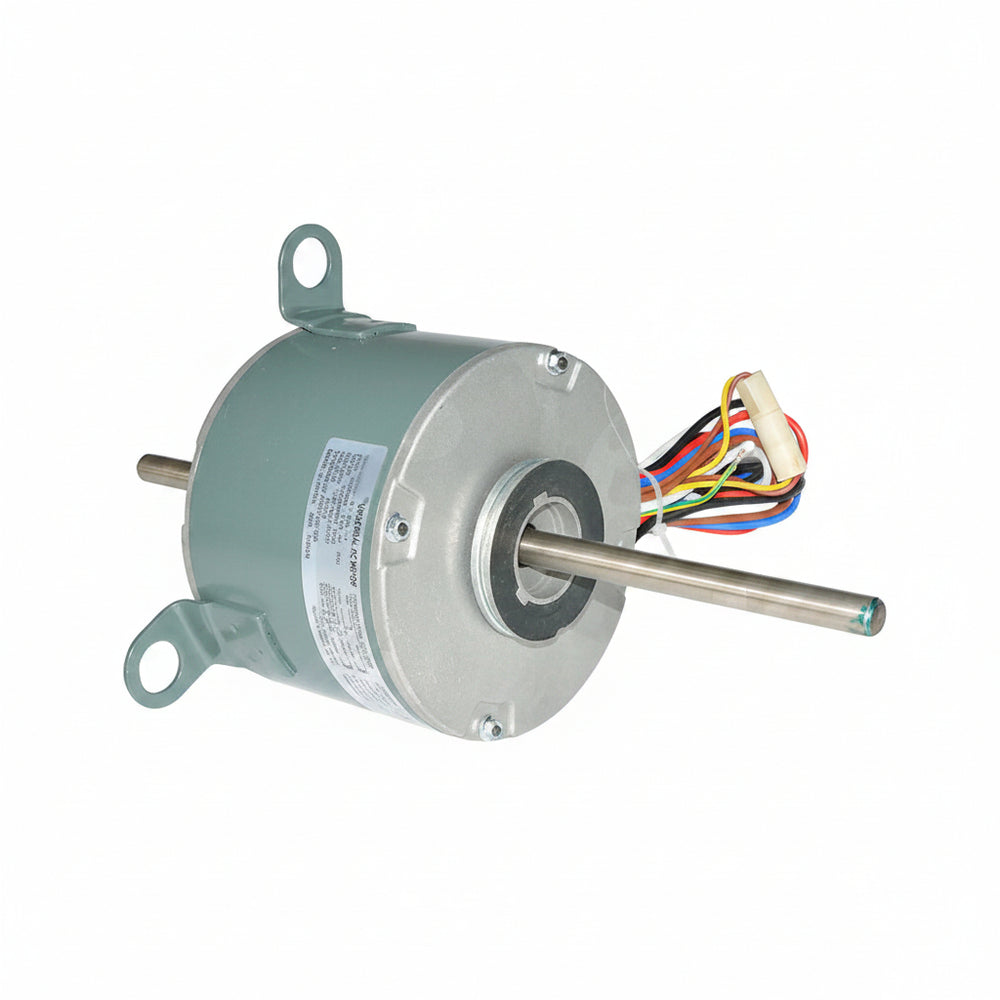

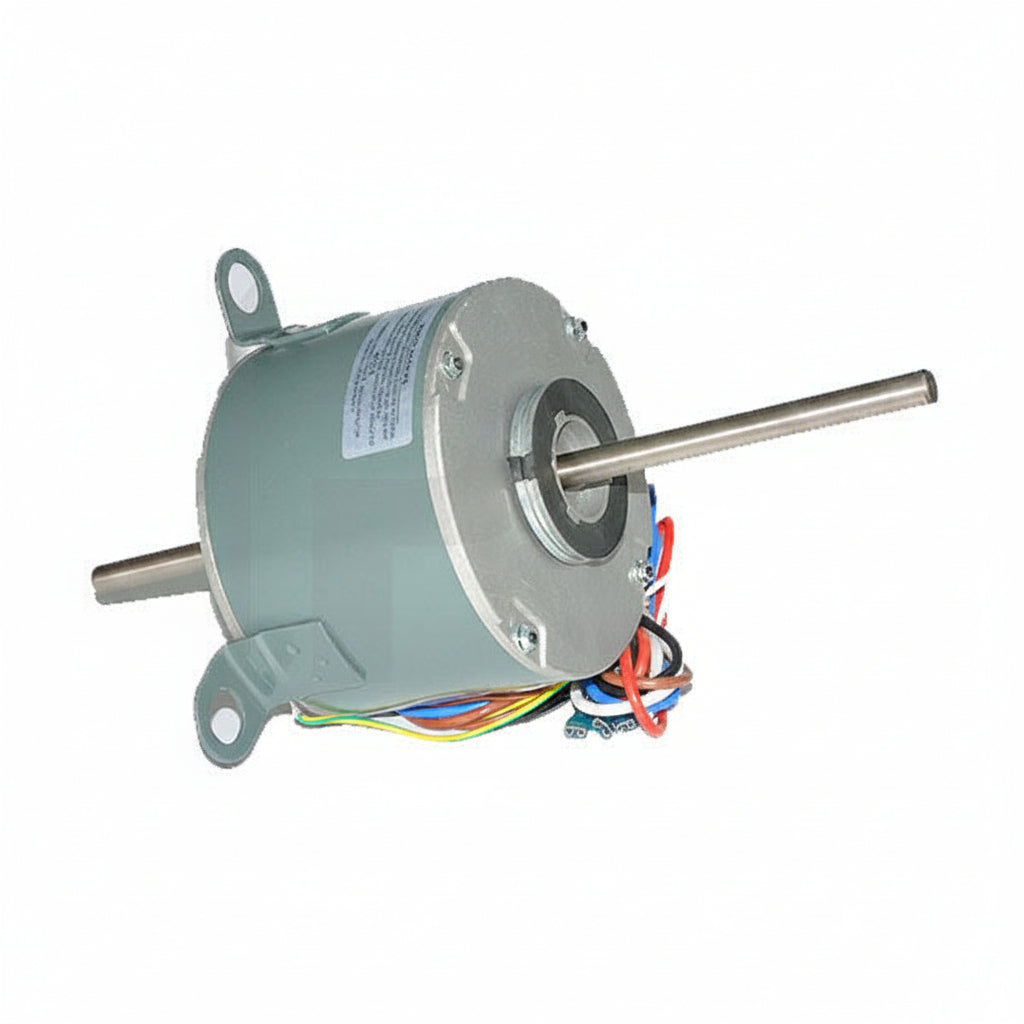

Motor Features:
1. Large Wind Amount.
2. Top company position as Carrier, York, McQuay, Trane and China Midea, Gree.
3. It is used in 2P, 3P, 4P Split type indoor air conditioner.
4. Brass terminals plug-in.
5. Steel end cap plated, rolled steel shell or resin packed.
Motor Application:
1. Air refresher, indoor unit of air conditioner.
2. Air purifier, row dust exhaust fan, fire smoke ventilation machine.
3. Pulse dust collector, cyclone dust collector, purification tower.
4. It adopts high quality thermost encapsulation materials.
5. OEM/ODM offered.
| Product Type | Premium Air Conditioner Motors |
| Brand Association | Used by top companies such as Carrier, York, McQuay, Trane, China Midea, Gree |
| Air Conditioner Type | 2P, 3P, 4P Split type indoor air conditioner |
| Applications | - Air refresher, indoor unit of air conditioner - Air purifier, row dust exhaust fan, fire smoke ventilation machine - Pulse dust collector, cyclone dust collector, purification tower |
| Key Features | - Large Wind Amount - Brass terminals plug-in - Steel end cap plated - Rolled steel shell or resin packed - High quality thermost encapsulation materials |
| Power Range | 3/4HP to 1HP |
| Customization | Motor specifications customized according to customer requirements, OEM/ODM offered |
Motor Specification:
Note: the following motor specification is customized according to customer requirement.
| Model Number | Voltage (V) | Frequency (Hz) | Power | Speed (RPM) | Rotation | Capacitor (MDF/VAC) | OEM Model |
|---|---|---|---|---|---|---|---|
| YSK140-550-6A | 208-230 | 60 | 3/4HP | 1075 | REVERSIBLE | 15/370 | 5KCP39PGM602T |
| YSK140-550-4A2 | 208-230 | 60 | 3/4HP | 1350/3 SPD | REVERSIBLE | 12/370 | PM330442 |
| YSK140-550-6A3 | 208-230 | 60 | 3/4HP | 1075 | REVERSIBLE | 12/370 | PM330441 |
| YSK140-550-6A4 | 208-230 | 60 | 3/4HP | 1075 | REVERSIBLE | 12/370 | PM330450 |
| YSK140-550-6A5 | 208-230 | 60 | 3/4HP | 1075 | REVERSIBLE | 12/370 | PM330440 |
| YSK140-550-6A7 | 208-230 | 60 | 3/4HP | 1075 | REVERSIBLE | 15/370 | 5KCP39PFM210S |
| YSK140-550-4A8 | 208-230 | 60 | 3/4HP | 1625/3 SPD | REVERSIBLE | 7.5/370 | FASCO D786 |
| YSK140-550-4A9 | 208-230 | 60 | 3/4HP | 1625 | REVERSIBLE | 7.5/370 | FASCO D789 |
| YSK140-735-6A | 208-230 | 60 | 1HP | 1125 | CW-LE | 22/440 | 5KC |
