Description
Product materials:
1. Bearing: rolling bearing, NSK low noise high-quality material.
2. Brass terminals plug-in.
3. Shaft: single shaft, nickel plating treatment.
4. Enclosure: electrophoretic coating treatment.
5. Winding: 100% pure copper.
Product features:

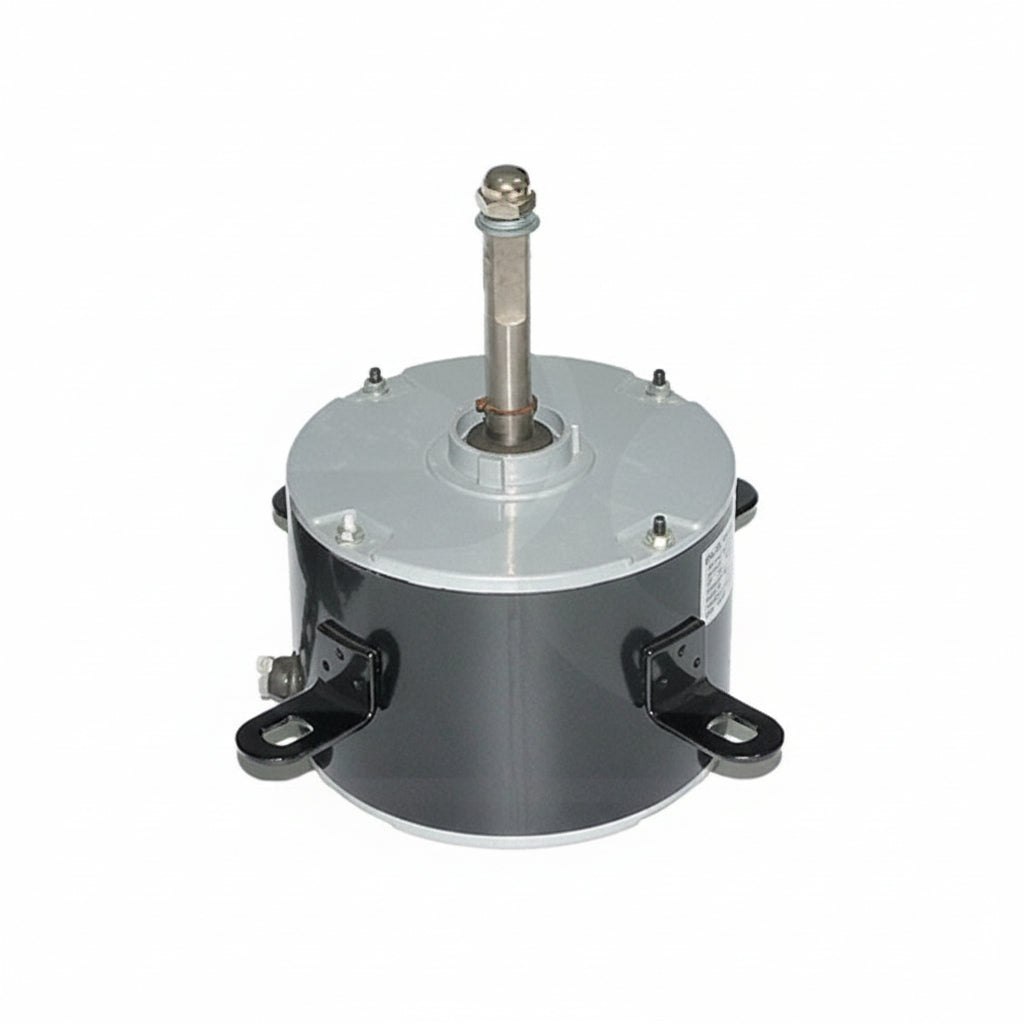

1. Motor with steel housing, designed for the cooling system, evaporative cooler, etc, suit for hot weather environment.
2. High-quality winding with excellent insulation and heat transmission properties.
3. Nice appearance, high starting torque, low starting current, smooth turning, low-temperature rise, low vibration, low noise, and great overload performance.
4. Saving Energy, higher efficiency.
5. Long life, Equipped with overheating protection, good Protection against Humidity.
6. Special motors can be designed according to the customer's requirements.
7. Be wildly used in Iraq, Sudan, Iran, Saudi, and other gulf country markets.
Product application:
1. Various kinds of air coolers, commercial and residential.
2. Air conditioning system.
| Product Type | Cooling System Motor with Steel Housing |
| Applications | - Various kinds of air coolers (commercial and residential) - Air conditioning systems |
| Materials | - NSK low noise high-quality rolling bearing - Brass terminals plug-in - Nickel plated single shaft - Electrophoretic coated enclosure - 100% pure copper winding |
| Performance Features | - High starting torque, low starting current - Smooth turning, low-temperature rise - Low vibration, low noise - Great overload performance - Energy efficient - Long life - Overheating protection - Good humidity protection |
| Customization | Special motors can be designed according to customer requirements |
| Target Markets | Iraq, Sudan, Iran, Saudi Arabia, and other Gulf countries |
| Environment | Suitable for hot weather environments |
Product specification:
| Model | Power (HP) | Voltage (V) | Frequency (Hz) | Speed (RPM) | Rotation | Insulation Class |
|---|---|---|---|---|---|---|
| YDK140-150-6T5 | 1/5 | 220-240 | 50 | 850/3 SPD | CCW | B |
| YDK160-185-4A | 1/4 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-185-4A2 | 1/4 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-245-4A | 1/3 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-245-4A2 | 1/3 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-375-4A | 1/2 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-375-4A2 | 1/2 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-550-4A | 3/4 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-550-4A2 | 3/4 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-735-4A | 1 | 115/127 | 50/60 | 1425/1725 | CW-SE | B |
| YDK160-735-4A2 | 1 | 220/230 | 50/60 | 1425/1725 | CW-SE | B |
