Description
- PID control of the measured or calculated value with an analog or three-step control valves
- Weather compensation control (remote setpoint adjustment in accordance with an external parameter)
- Calculation of the sum or the ratio of the signals, the difference or the root of the difference between two signals

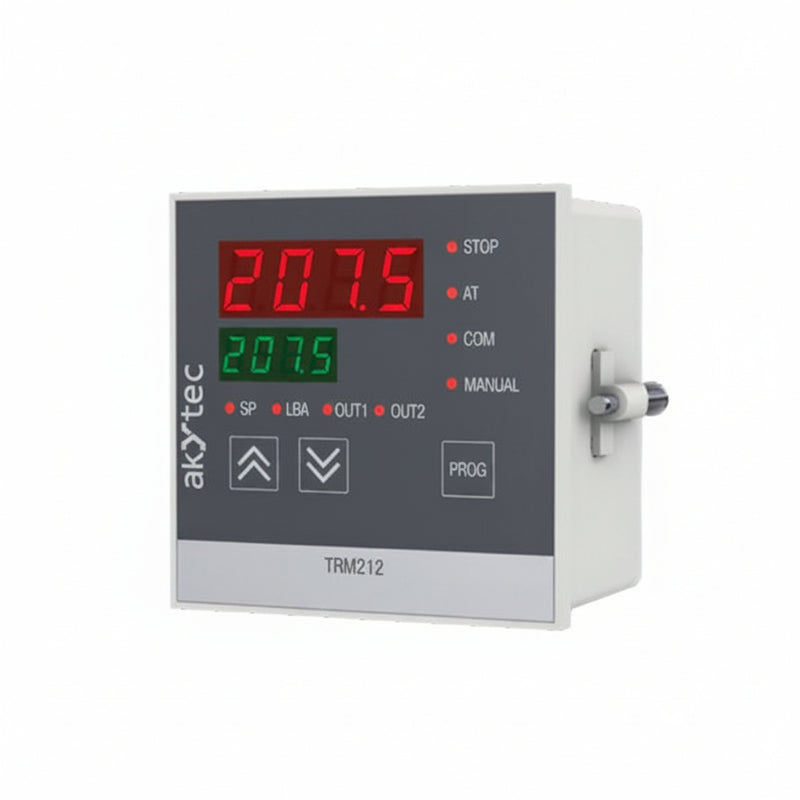

- TRM212 is a stand-alone PID controller available in two enclosures: for wall or for panel mounting. A special feature of this process controller is the ability to control analog- or 3-step control valves. Depending on the device variant, you can implement it whether with an analog output or with two digital outputs.
- The TRM212 has two inputs and two outputs on board. The inputs are configurable and can be set for standard current/voltage signals (0-1 V, 4-20 mA, etc.) or for different standard TC/RTD signals, what allows this device to measure, display and control different physical process variables such as pressure, temperature, humidity, etc. The optional outputs (relay, 4-20 mA, 0-10 V) and RS485 interface provide particular flexibility when using this controller for creating automatic control and regulation systems of various processes in different areas of industry, agriculture and utilities.
